Ismaillia Foot Bridge at Ezz El-Din Education Center, Egypt

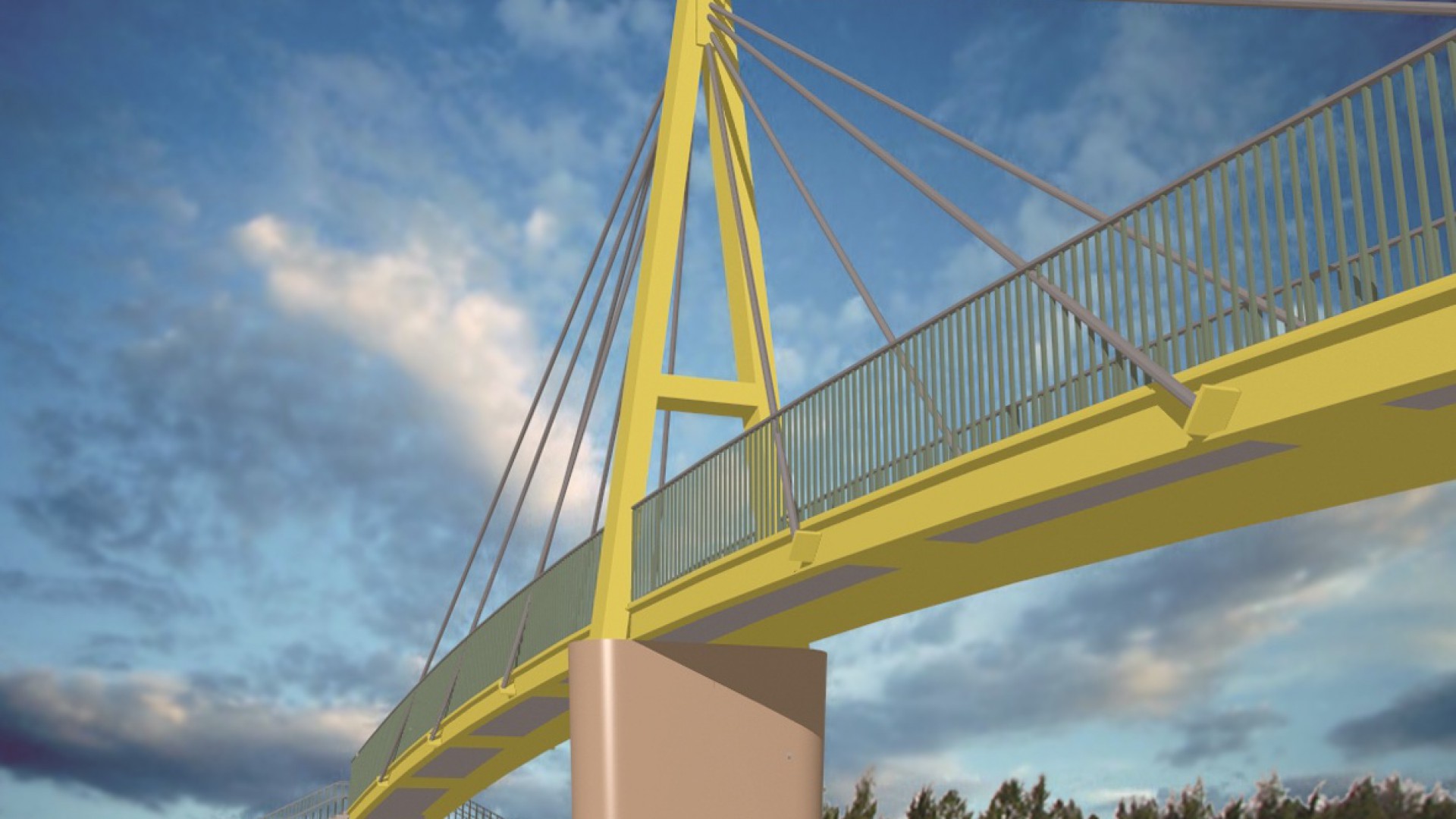

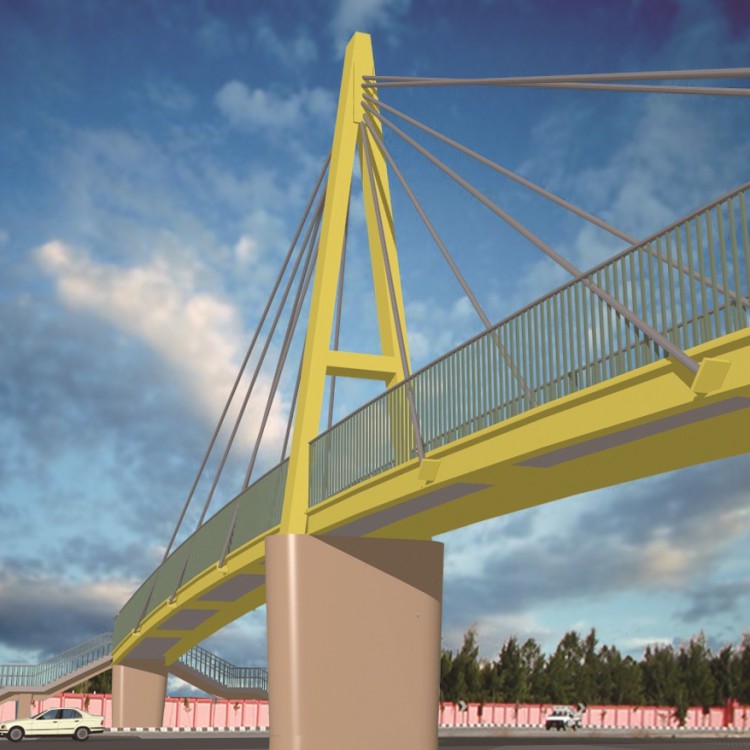

Almost equal spans Cable Stayed Foot bridge consists of two equal spans (2x25m). Cables with different lengths are used to support the main girders. Main elements of the bridge are welded plate girders using the available plates and sections manufactured in local mills. The 12cm reinforced Concrete slab decking supported on steel beams (cross girders). Horizontal bracing is arranged on floor & fixed to main girder. A wing reinforced concrete stairs is arranged on each side of the road.
